Digital Radiography (DR)
Method Overview

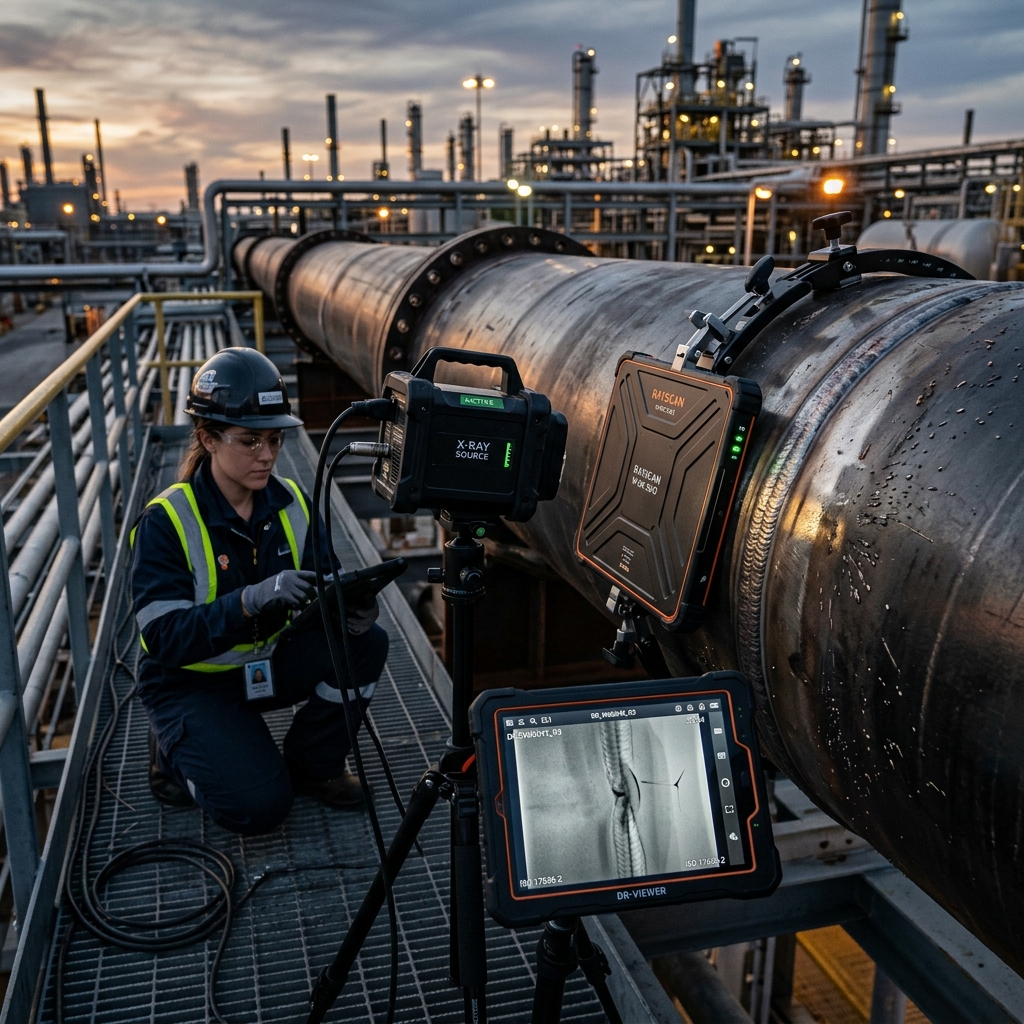

Real-time radiographic imaging using flat panel detectors (DDA) for immediate film-free weld and component inspection.
Core Method Specifications
Target Applications & Governing Standards
1 Scopes ConfiguredMethod Limitations & Operational Boundary Conditions
Critical physics limits, thermal envelopes, blind spots, and ASME Sec V / API procedural boundaries for DR.
DDA semiconductor electronics and scintillator screens degrade irreversibly above 50°C. Active cooling jackets required for hot environments.
Zero dead zone; sub-millimeter pixel pitch (75 µm to 200 µm)
Tangential profile shots capture outer/inner wall silhouette with extreme precision; planar internal flaws require alignment within ±5°
- •Internal cracks oriented obliquely to beam projection
- •Dead pixels or cluster pixel defects on digital sensor array masking micro-porosity
Geometric unsharpness (Ug) blooming on small diameter pipe profiles due to short source-to-detector distance
Confirm exact localized remaining wall thickness at tangential profile erosion points
Volumetric inspection of welds where rigid flat panel placement is geometrically obstructed
Technique-to-OEM Compatibility Matrix
Verified manufacturers, instrument models, and diagnostic portals supporting DR.
Waygate Technologies
Global industrial inspection conglomerate under Baker Hughes, encompassing Krautkrämer ultrasonic, Seifert radiography, Everest borescopes, and phoenix|x-ray computed tomography.
Carestream NDT
Global benchmark for digital radiography systems, computed radiography (CR) phosphor imaging plates, and high-contrast industrial NDT films (formerly Kodak NDT).
Dürr NDT
German pioneer of computed radiography (CR) laser scanners, high-resolution digital detector arrays (DR flat panels), and D-Tect X radiographic evaluation software.
VisiConsult X-ray Systems
German specialist manufacturer of bespoke high-energy industrial X-ray inspection vaults, computed tomography (CT), and robotic ADR digital radiography systems.
GE HealthCare
Global enterprise medical imaging innovator manufacturing clinical Micro-CT systems, high-frequency ultrasonic diagnostic transducers, and hospital radiological assemblies.
Siemens Healthineers
Multinational healthcare pioneer developing dual-source CT imaging systems, medical linear accelerators (Linacs), radiation vault shielding diagnostics, and high-frequency ultrasound.
Philips Healthcare
Global medical technology enterprise producing high-resolution diagnostic ultrasound transducers, volumetric Micro-CT scanners, and X-ray tube assemblies.
Varian Medical Systems (Siemens)
Authoritative world manufacturer of high-energy medical and industrial linear accelerators (Linacs), radiation shielding quality assurance, and X-ray tubes under Siemens Healthineers.
Elekta
Swedish precision radiation oncology equipment manufacturer producing medical Linac assemblies and hospital vault radiation shield testing apparatus.
VisiConsult
OEM Manufacturer for DR inspection systems.
Varex Imaging
OEM Manufacturer for DR inspection systems.
