Radiographic Testing (RT)

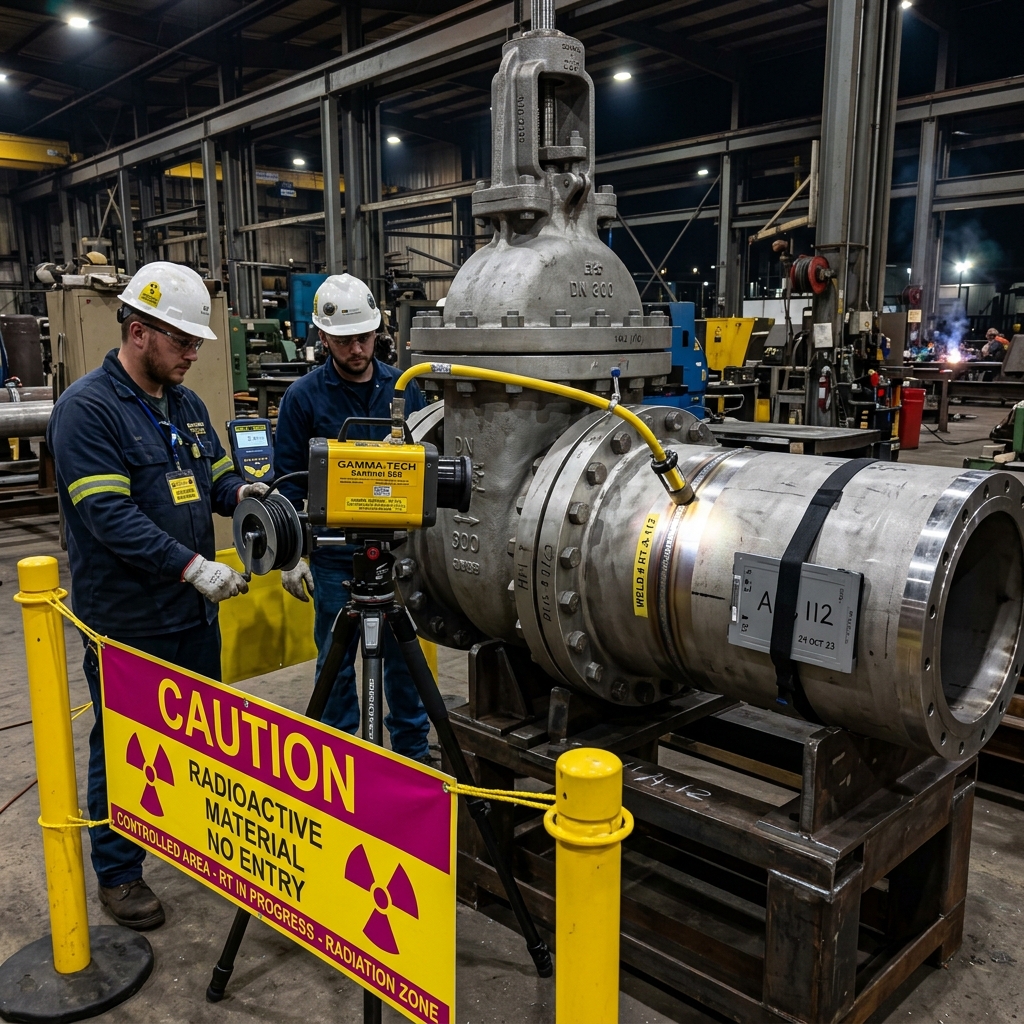

Method Overview

High-energy X-ray or Gamma-ray imaging for total volumetric density analysis and internal defect detection.

Core Method Specifications

Technique IDRT

AcronymRT

CategoryCore

ModalityRadiographic

Standardized Report TemplateISO 17020 Ready

RT-Standard-TemplateTest in Sandbox

Target Applications & Governing Standards

2 Scopes Configured

Valves & Pressure Control

API 598 ASME B16.34 ASTM E446

Target Assets / Components:

Valve Body CastingsControl Valve Internal TrimCheck Valve Disc Hinge

Detectable Defects & Anomalies:

• Internal Shrinkage• Porosity• Internal Seating Misalignment• Casting Voids

Piping & Loops

API 570 ASME B31.3

Target Assets / Components:

Process Piping WeldsTie-in Joints

Detectable Defects & Anomalies:

• Slag Inclusion• Porosity• Internal Weld Root Defect

Method Limitations & Operational Boundary Conditions

Critical physics limits, thermal envelopes, blind spots, and ASME Sec V / API procedural boundaries for RT.

Level III Procedure Control

Operating Temp Envelope

Standard Envelope-40°C to +80°C (-40°F to 176°F) for film/detectors

High-Temp CapabilityInspected component can be at elevated operating temperatures (> 300°C) with stand-off thermal shielding for film cassettes

Radiographic film or CR phosphor plates warp, desensitize, or fog if exposed to direct contact heat > 50°C.

Thickness & Dead Zone

Min Thickness0.8 mm (0.03 in) with low-energy microfocus X-ray tubes

Max RangeUp to 65 mm (2.5 in) with Iridium-192; up to 150 mm (6.0 in) with Cobalt-60; up to 400 mm with linear accelerators (Betatron/LINAC)

Near-Surface Dead Zone

Zero physical dead zone (volumetric projection through full thickness)

Surface Condition & Couplant

Roughness & PrepWeld ripples, undercuts, and spatter should be blended if they could obscure internal defect film images

Coating ToleranceUniform coatings (paint, galvanizing) do not hinder inspection; uneven zinc drips cause localized contrast blotches

Geometry & Orientation

Orientation Sensitivity

Extreme planar sensitivity: Planar cracks and lack of side-wall fusion MUST align within ±5° of the central radiation beam axis to be detectable

Clearance:Full 360° radiation exclusion boundary (typically 10 m to 50 m perimeter barricade) required by ionizing radiation safety regulations

Critical Blind Spots

•Tight planar side-wall lack of fusion tilted at bevel angles (typically 30° to 37.5°) when shot perpendicularly
•Fine stress corrosion cracking (SCC) branching randomly without dominant through-wall path
•Laminar flaws oriented parallel to plate surface produce zero optical density contrast change

False Indication Trap:

External scratches, static electrical discharges, or water drying stains on radiographic film emulsion mimicking cracks

Recommended Cross-Validation

PAUTView Method

Superior volumetric detection and depth sizing of planar lack-of-fusion and oblique weld cracks

UTView Method

Instant depth measurement of indications identified on 2D radiographic projections

Level III Code Compliance Directive:ASME Section V Article 2 strictly requires Hole or Wire-type Image Quality Indicators (IQI) placed on source/film side achieving mandated 2-2T or 2-1T sensitivity.
