Ultrasonic Testing (UT)
Method Overview

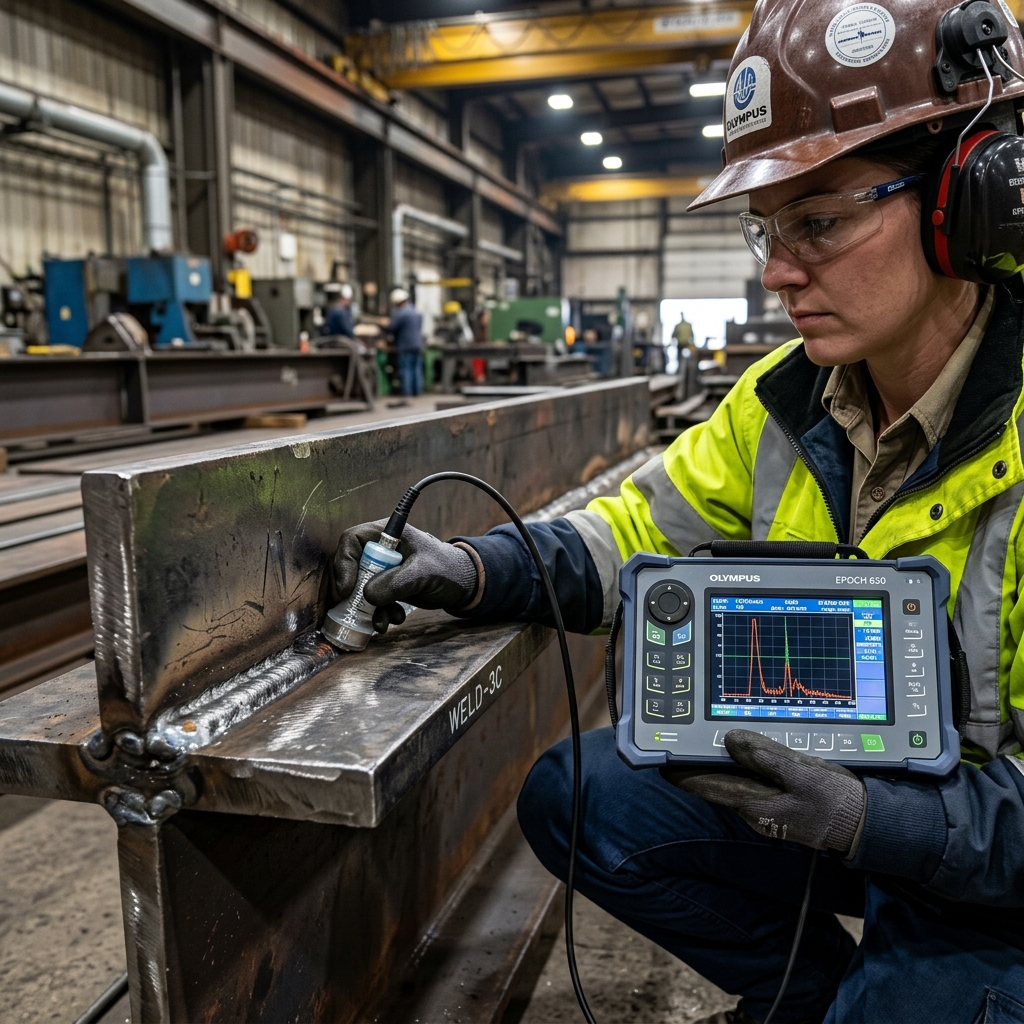

Advanced thickness measurement and volumetric flaw detection using high-frequency pulse-echo sound waves.
Core Method Specifications
Target Applications & Governing Standards
3 Scopes ConfiguredMethod Limitations & Operational Boundary Conditions
Critical physics limits, thermal envelopes, blind spots, and ASME Sec V / API procedural boundaries for UT.
Sound velocity in carbon steel decreases by ~1% per 55°C (100°F) rise. Thermal calibration velocity compensation is mandatory above 50°C per ASME Sec V Art 4.
1.2 mm to 3.0 mm (0.05 to 0.12 in) ringdown dead zone beneath search unit contact face
Carboxymethylcellulose (CMC) gel, glycerine, or light motor oil; high-temp synthetic pastes required for hot piping
Optimum detection when sound beam strikes planar reflector perpendicularly (within ±10°). Skewed cracks (> 15° off-axis) reflect energy away from transducer
- •Near-surface laminar inclusions masked within probe ringdown dead zone (first 1.5 mm)
- •Tight planar cracks oriented parallel to the ultrasonic beam axis (vertical shear splits)
- •Coarse-grained austenitic stainless steel (cast 316/CF8M) causing extreme acoustic attenuation and beam defocusing
Acoustic mode conversion echoes from backing rings, weld root counterbores, or crown geometry
Sectorial beam steering from 40° to 70° to strike off-axis planar bevel flaws
Volumetric radiography to verify internal porosity vs. localized non-metallic inclusions
Technique-to-OEM Compatibility Matrix
Verified manufacturers, instrument models, and diagnostic portals supporting UT.
Evident Scientific
Global leader in advanced optical, ultrasonic, and radiographic inspection technologies (formerly Olympus Scientific Solutions).
Waygate Technologies
Global industrial inspection conglomerate under Baker Hughes, encompassing Krautkrämer ultrasonic, Seifert radiography, Everest borescopes, and phoenix|x-ray computed tomography.
Innerspec Technologies
World leader in Electro Magnetic Acoustic Transducer (EMAT) technology and dry-coupled ultrasonic testing (DCUT) for high-temperature and couplant-free inspection.
Sonatest
Pioneering British manufacturer of rugged ultrasonic flaw detectors, phased array instruments, wheel probes, and precision UT transducers.
Zetec
Advanced eddy current and ultrasonic NDT technology subsidiary of Eddyfi/Roper for nuclear power generation, aerospace, and balance-of-plant tube inspections.
Flyability
Swiss pioneer of collision-resilient confined-space inspection drones (Elios series) with protective cage and multi-sensor payloads (UT thickness gauge, LiDAR 3D, and thermal) for tanks, boilers, and chimneystacks.
Guided Ultrasonics (GUL)
Imperial College London spinout and authoritative pioneer of long-range guided wave ultrasonic testing (GWT / LRUT) systems for rapid pipeline corrosion screening under insulation (CUI).
Mistras Group
Global enterprise manufacturer and service provider of multi-channel Acoustic Emission (AE) diagnostic instrumentation (Physical Acoustics PAC), automated UT scanners, and asset integrity software.
Gecko Robotics
Pioneer of wall-climbing magnetic NDT crawlers (TOKA series) that capture millions of ultrasonic thickness readings across boilers, tanks, and pressure vessels for predictive digital twin analysis.
JIREH Industries
Canadian manufacturer of precision manual and automated ultrasonic scanners, circumferential pipe crawlers, and encoder accessories for weld and corrosion mapping.
ROSEN Group
Global technological leader in in-line pipeline inspection (smart ILI pigs) combining high-resolution Magnetic Flux Leakage (MFL), Ultrasonic Testing (UT), and EMAT for pipeline integrity management.
GE HealthCare
Global enterprise medical imaging innovator manufacturing clinical Micro-CT systems, high-frequency ultrasonic diagnostic transducers, and hospital radiological assemblies.
Siemens Healthineers
Multinational healthcare pioneer developing dual-source CT imaging systems, medical linear accelerators (Linacs), radiation vault shielding diagnostics, and high-frequency ultrasound.
Philips Healthcare
Global medical technology enterprise producing high-resolution diagnostic ultrasound transducers, volumetric Micro-CT scanners, and X-ray tube assemblies.
EKOSCAN Integrity
French manufacturer specializing in advanced ultrasonic testing (UT), Phased Array (PAUT), specialized transducers, calibration blocks, and automated weld scanners.
Modsonic Instruments
Pioneer Indian manufacturer of portable ultrasonic flaw detectors, thickness gauges, and transducers with 35+ years of indigenous NDT engineering.
Electronic & Engineering Co. (EECI)
Renowned Indian manufacturer of custom ultrasonic probes, phased array wedges, automated ultrasonic inspection systems, and magnetic particle test benches.
Phoenix ISL
UK boutique designer of specialized ultrasonic transducers, custom PAUT phased array probes, and automated robotic scanners for nuclear and aerospace.
ScanTech Instruments
Boutique manufacturer of specialized subsea automated UT crawlers, bespoke magnetic scanners, and high-temp corrosion inspection heads.
Kardens NDT Metrology
German specialist precision EDM notch reference calibration blocks, ASME / ISO calibration standards, and custom test pieces.
